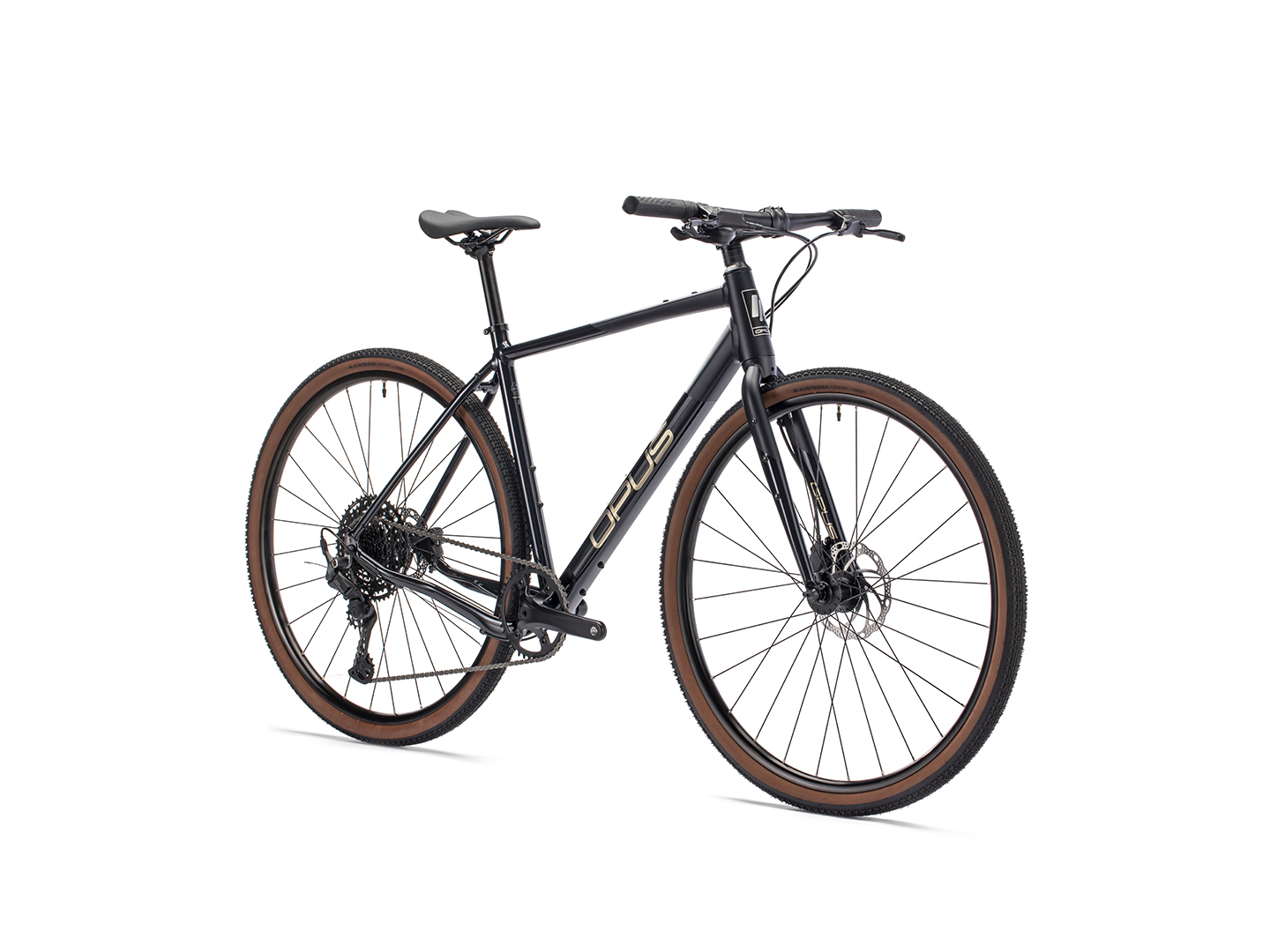

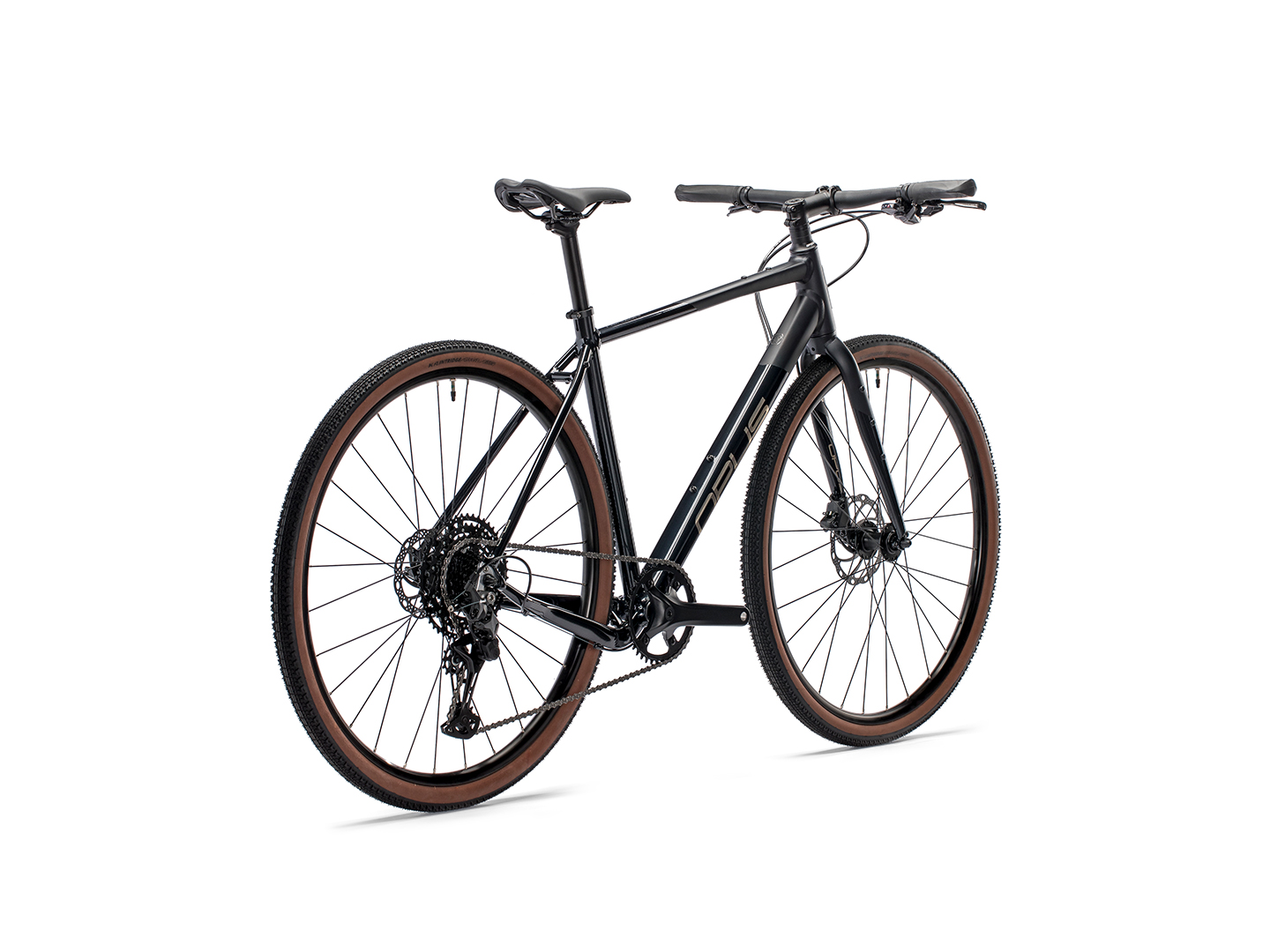

HORIZON FB
$ 1279.99
Key elements:
- Proven Horizon Progressive Geometry to master all surfaces
- Rugged steel fork with triple mounts for bottle or bags
- 10-Speed Shimano CUES drivetrain with QR wheels
- Big clearance for 700 x 42 tires
- Rear rack and fender mounts, 5 bottle and top tube mounts
Colors:
Technologies
1X10 Gearing
1X10 Gearing
Aluminum Frame
Aluminum Frame
Steel Fork
Steel Fork
Linkglide Technology
Linkglide Technology
Optimized Gearing
Optimized Gearing
Progressive Geometry
Progressive Geometry
XS-XL
XS-XL
Characteristics
Frame
Aluminum
Fork
Steel tapered 1-1/2 to 1-1/8 in
Sizes
XS S M L L XL
Shifters
Shimano CUES SL-U6000-10R
Front derailleur
N/A
Rear derailleur
Shimano CUES RD-U6000 GS 10/11s
Brakes
Tektro HD-R280 hydraulic disc
Brakelevers
Shimano CUES U6000
Crank
Prowheel RPL-FD16S
Chainrings
40t
Bottom bracket
Neco B910
Cassette
Shimano LG300-10 11-48t
Chain
KMC X-Glide
Headset
TH NO.42/48/ACB
Handlebar
Alloy 31.8mm | 12mm rise | 6 degree backsweep
Stem
Promax
Grips tape
Velo ERGO dual density
Saddle
Opus Gravel
Seatpost
Promax alloy 27.2 x 300
Wheels rims
Weinmann U28TL
Hubs
Alex 28h 6 bolts
Tires
Kenda K1152 Flintridge Pro 700x40c
Pedals
N/A
Other
Top tube bag mounts
Other
Fr/rr rack and fender mounts
Geometry
| Size | XS | S | M | L | XL |
| Rider’s height (± 5CM) | 160 | 168 | 175 | 183 | 190 |
| Rider’s height (± 2″) | 5’3” | 5’6? | 5’9” | 6’0” | 6’3? |
| S – Seat tube | 420 | 460 | 500 | 540 | 580 |
| TT – Top tube | 528 | 550 | 572 | 595 | 618 |
| HT – Head tube | 95 | 120 | 145 | 170 | 195 |
| HA – Head angle | 70.5 | 71 | 71.5 | 72 | 72.5 |
| SA – Seat angle | 74.5 | 74 | 73.5 | 73 | 72.5 |
| CS – Chain stay | 427 | 427 | 427 | 429 | 429 |
| D – BB drop | 80 | 78 | 76 | 74 | 72 |
| ST – Stack | 534 | 557 | 581 | 605 | 628 |
| RE – Reach | 380 | 390 | 400 | 410 | 420 |
| SO – Stand over | |||||
| Handlebar width (mm) | 580 | 600 | 600 | 620 | 620 |
| Stem length (mm) | 80 | 80 | 90 | 90 | 100 |
| Crank length (mm) | 165 | 170 | 170 | 172.5 | 175 |
