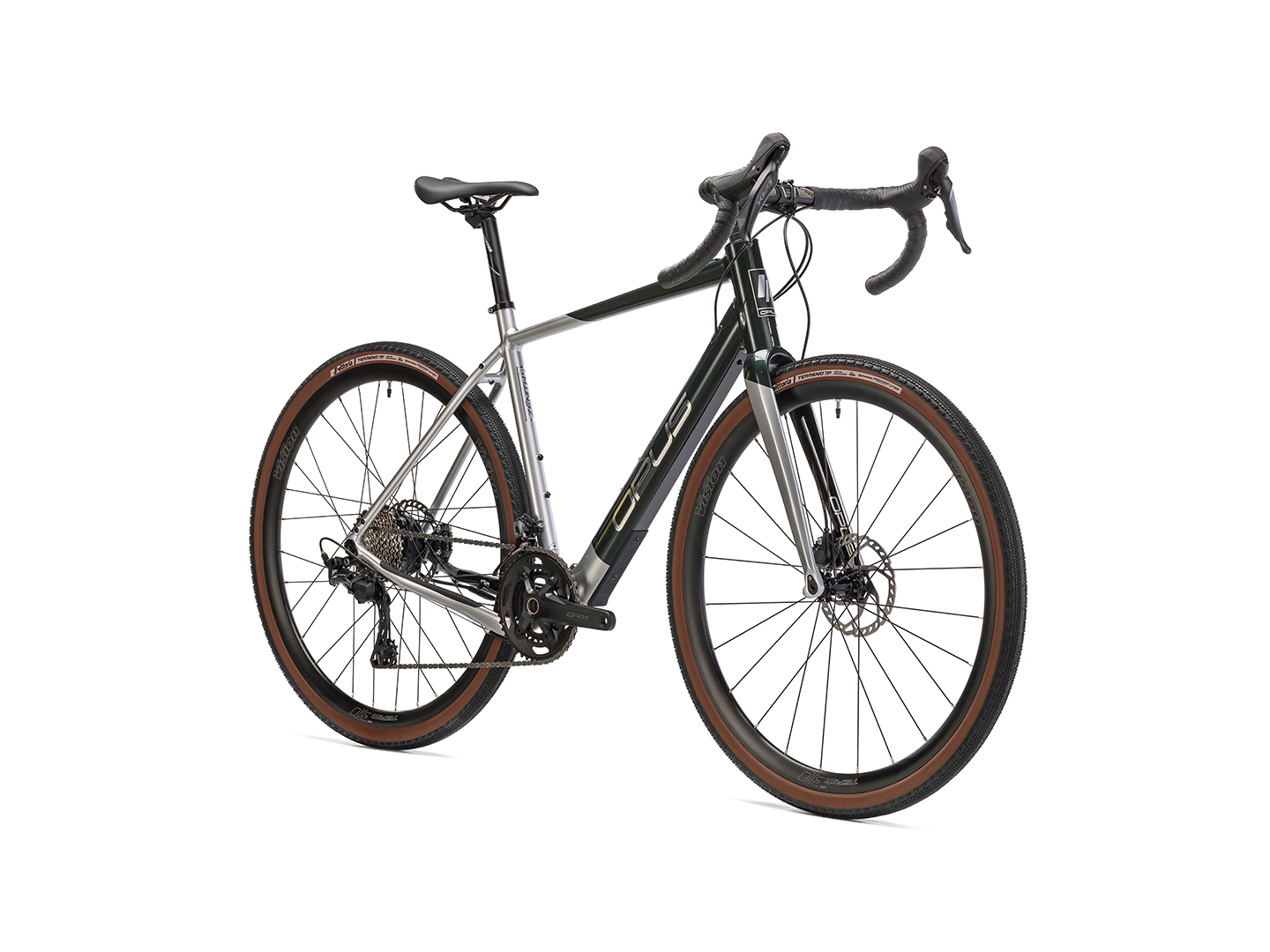

ZENITH GRX12
FSA e-system HM.2 & 250Wh integrated battery
$ 4999.99
Key elements:
- Gravel capable aluminum frame
- Full carbon fork
- Complete Shimano GRX 12 speed hydraulic groupset
- Clearance for 700 x 45 tires
- FSA e-system HM.2 & 250Wh integrated battery
Colors:
Technologies
Characteristics
Full carbon tapered 1-1/2 to 1-1/8 in
31 (with battery)
XXS XS S M L XL
Midnight Green
Shimano ST-RX610 2x12
Shimano FD-RX820
Shimano RX 400 flat mount hydraulic
Shimano FC-RX610
46-30
Shimano sealed BSA
Shimano 11-34
Shimano M6100 HG 12s
FSA integrated sealed
FSA NS Adventure compact 12° flare
FSA Gossamer +/-6°
Velo VexGel diamond grip
Opus Gravel
FSA Gossamer 27.2 x 350 mm
FSA Team 30 i23
FSA 12 x 100 mm / 12 x 142mm
Vittoria Terreno T50 Mixed Gravel Endurance 700x40c
N/A
FSA HM2.0 245W 40Nm hub motor
FSA e-system 250Wh 36V 6.8Ah battery
Optional 180Wh 36V 4.8Ah range extender battery
Geometry
| Size | XXS | XS | S | M | L | XL |
| Rider’s height (± 5CM) | 155 | 160 | 168 | 175 | 183 | 190 |
| Rider’s height (± 2″) | 5’1” | 5’3” | 5’6″ | 5’9” | 6’0” | 6’3″ |
| S – Seat tube | 420 | 450 | 480 | 510 | 545 | 580 |
| TT – Top tube | 515 | 530 | 544 | 559 | 578 | 599 |
| HT – Head tube | 115 | 135 | 155 | 175 | 195 | 215 |
| HA – Head angle | 69.75 | 70.5 | 71 | 71.5 | 72 | 72.5 |
| SA – Seat angle | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| CS – Chain stay | 428 | 428 | 430 | 430 | 432 | 432 |
| D – BB drop | 80 | 78 | 76 | 74 | 73 | 72 |
| ST – Stack | 534 | 554 | 573 | 592 | 611 | 631 |
| RE – Reach | 372 | 376 | 380 | 384 | 391 | 400 |
| SO – Stand over | 684 | 709 | 735 | 760 | 789 | 815 |
| Handlebar width (mm) | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem length (mm) | 70 | 80 | 90 | 90 | 100 | 100 |
| Crank length (mm) | 165 | 170 | 170 | 172.5 | 172.5 | 175 |
