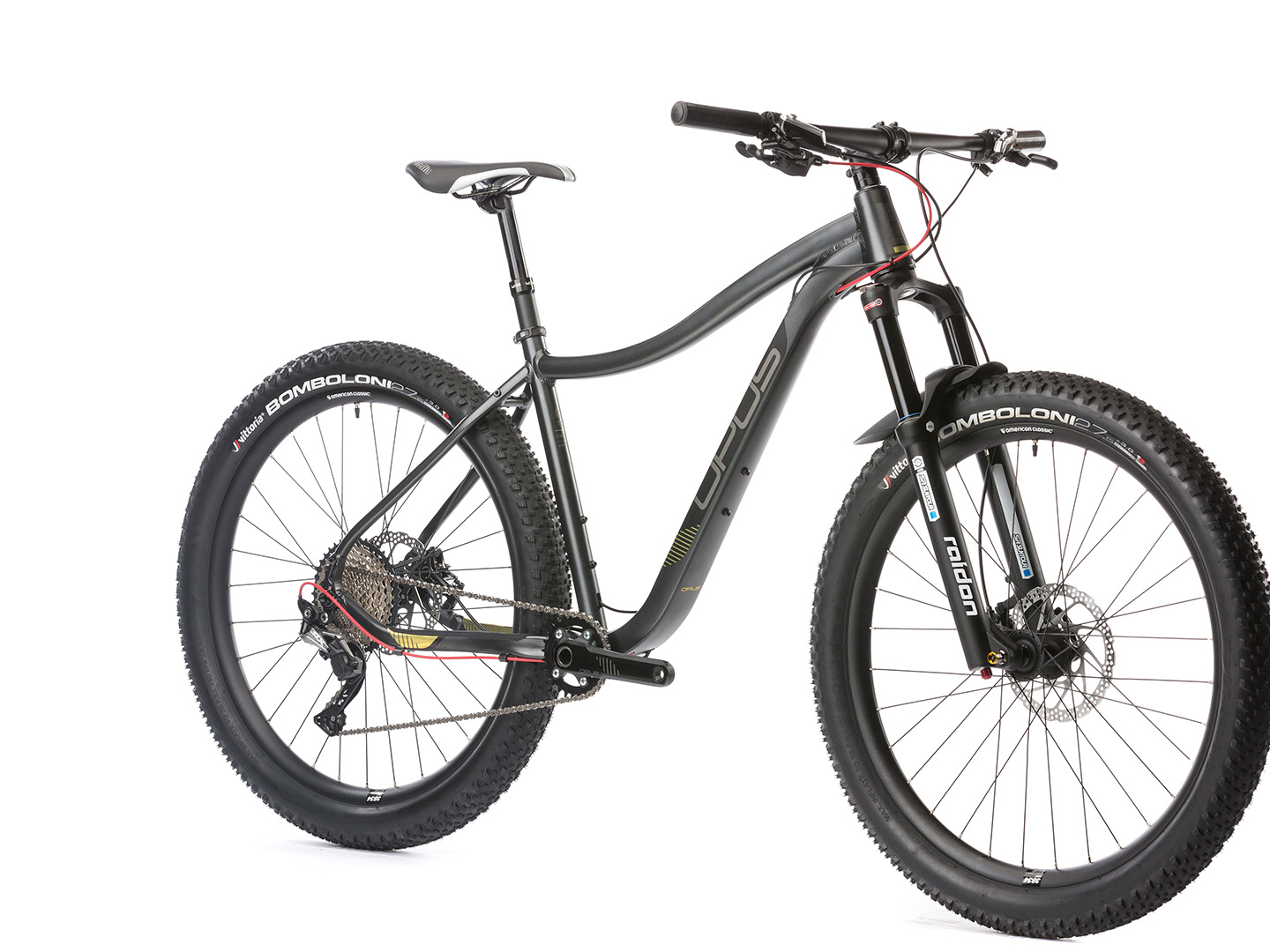

MULLARD 1 27.5
2018|2019
Archive
Key elements:
- Shimano SLX 1 x 11 drivetrain
- KS Stealth Dropper Post
- Suntour Raidon 34 130mm fork with lockout
Colors:
Characteristics
Frame
Meta 20 6061 Aluminum
Fork
Suntour Raidon-34 130mm Boost With Lockout and Rebound Control
Weight (lb)
30 lb / 13.6 kg
Sizes
S M L L XL XXL
Shifters
Shimano SLX 1 x 11
Front derailleur
N/A
Rear derailleur
Shimano SLX
Brakes
Shimano M615 Hydraulic Disc
Brakelevers
Shimano M615
Crank
Samox Alloy Single Ring Boost
Chainrings
28
Bottom bracket
Samox Boost
Cassette
Shimano 11-42
Chain
KMC X11
Headset
FSA Orbit Integrated Sealed
Handlebar
Zoom Tequila 780mm 35.0
Stem
Zoom Tequila
Grips tape
Velo Lightweight Silicone
Saddle
Selle Italia Q-Bik
Seatpost
Ks Lev E30I Dropper 30.9 w/ Remote
Wheels rims
American Classic 3834 Boost
Hubs
American Classic Boost 110/148
Tires
Vittoria Bomboloni 27.5 x 3.0
Pedals
VP-538
Other
Internal Dropper Post Compatible
Geometry
| Size | S | M | L | XL | XXL |
| Rider’s height (± 5CM) | 163 | 170 | 178 | 185 | 190 |
| Rider’s height (± 2″) | 5’4” | 5’7” | 5’10’ | 6’1” | 6’3″ |
| S – Seat tube | 400 | 430 | 460 | 490 | 520 |
| TT – Top tube | 572 | 595 | 632 | 645 | 658 |
| HT – Head tube | 100 | 110 | 110 | 120 | 130 |
| HA – Head angle | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 |
| SA – Seat angle | 74.5 | 73 | 73 | 73 | 73 |
| CS – Chain stay | 430 | 430 | 430 | 430 | 430 |
| D – BB drop | 55 | 55 | 55 | 55 | 55 |
| ST – Stack | 620 | 629 | 629 | 638 | 648 |
| RE – Reach | 400 | 420 | 440 | 450 | 460 |
| SO – Stand over | 721 | 738 | 756 | 772 | 791 |
| Handlebar width (mm) | 780 | 780 | 780 | 780 | 780 |
| Stem length (mm) | 45 | 45 | 55 | 55 | 55 |
| Crank length (mm) | 170 | 175 | 175 | 175 | 175 |
