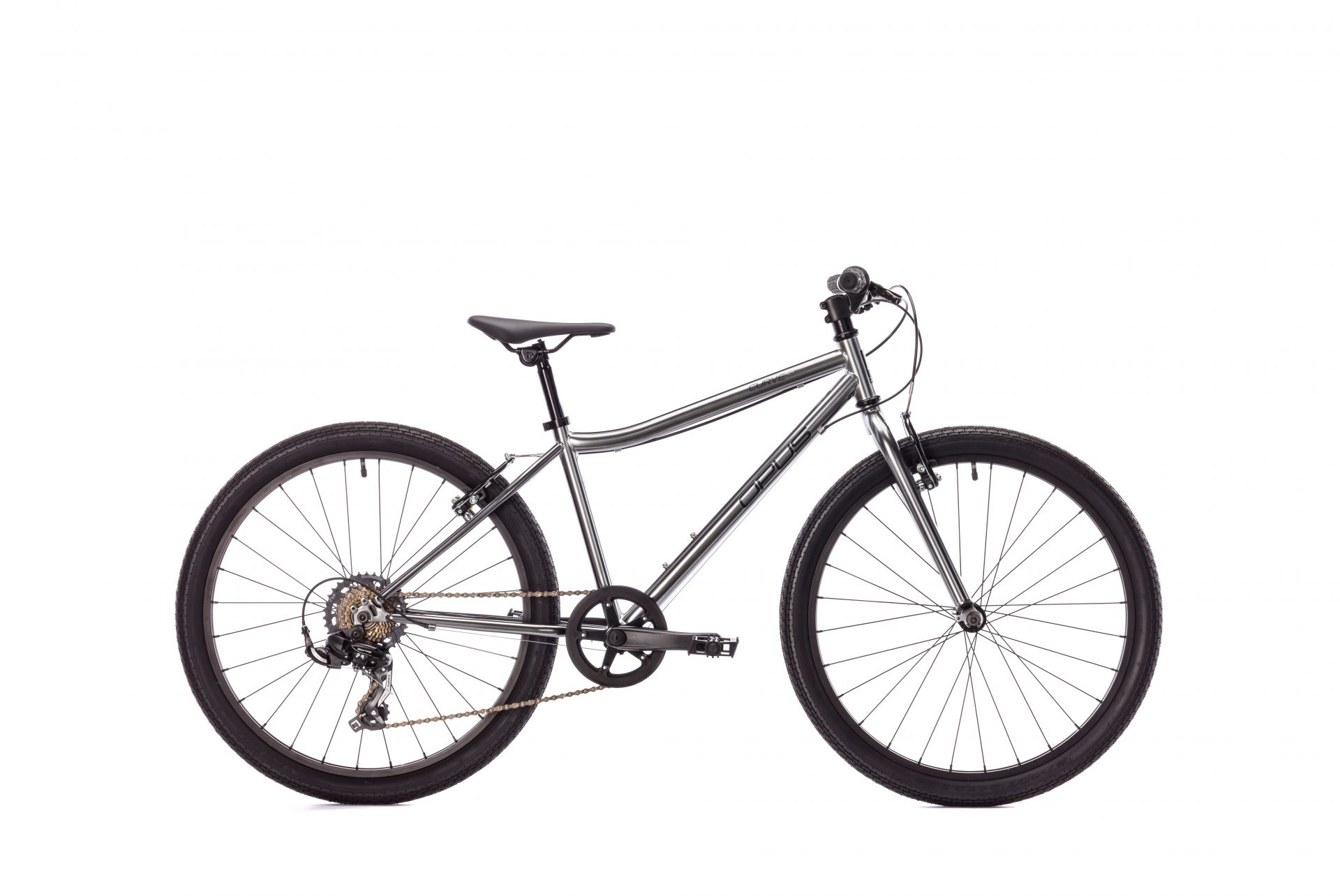

CURVE 24
24-inch
$ 499.99
Key elements:
- Proven 24-inch geometry
- Opus Meta 10 steel frame and fork
- Shimano 1x7 drivetrain
- Equipped with front and rear V-brakes
- Large easy-rolling tires
Colors:
Technologies
24"
24"
Meta 10 Steel
Meta 10 Steel
Characteristics
Fork
Meta 10 steel
Weight (lb)
27
Color(s)
SILVER Plum
Shifters
SRAM MRX twist 7
Rear derailleur
Shimano TY-500
Brakes
Tektro V-Brakes
Brakelevers
Tektro V-brake lever
Crank
YL 152 mm single ring
Chainrings
36
Bottom bracket
9 Pc steel
Cassette
14-34
Chain
Keensi 7 spd
Headset
VP semi-integrated
Handlebar
Opus Junior 45 mm rise
Stem
Opus Junior
Grips tape
Opus Kraton
Saddle
Opus Junior
Seatpost
Opus Junior
Wheels rims
Ace aluminum
Hubs
KT
Tires
Innova IA-2236 24 x 2.125
Pedals
Resin flat
Geometry
| Size | 24″ |
| Rider’s height (± CM) | 67 |
| Rider’s age | 8-12 |
| S – Seat tube | 355 |
| TT – Top tube | 490 |
| HT – Head tube | 100 |
| HA – Head angle | 70 |
| SA – Seat angle | 74 |
| CS – Chain stay | 400 |
| D – BB drop | 30 |
| ST – Stack | |
| RE – Reach | |
| SO – Stand over | |
| Handlebar width (mm) | 540 |
| Stem length (mm) | 45 |
| Crank length (mm) | 152 |
