ORPHEO 5 ST
2020
Archive
Key elements:
- Sporty step through geometry for performance and comfort
- Alloy frame
- Shimano 3x7 drivetrain
- V brakes
- Internal cable routing

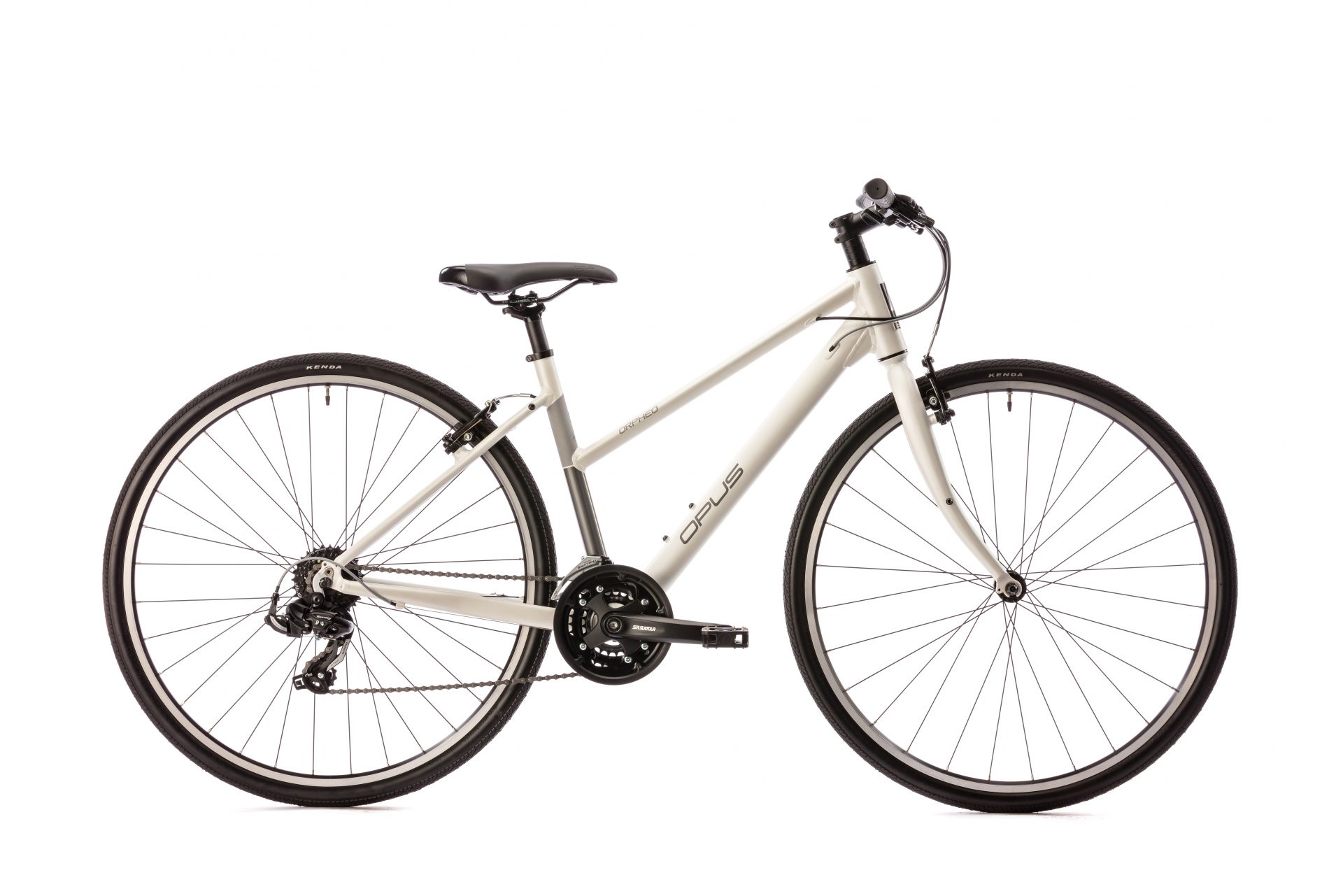

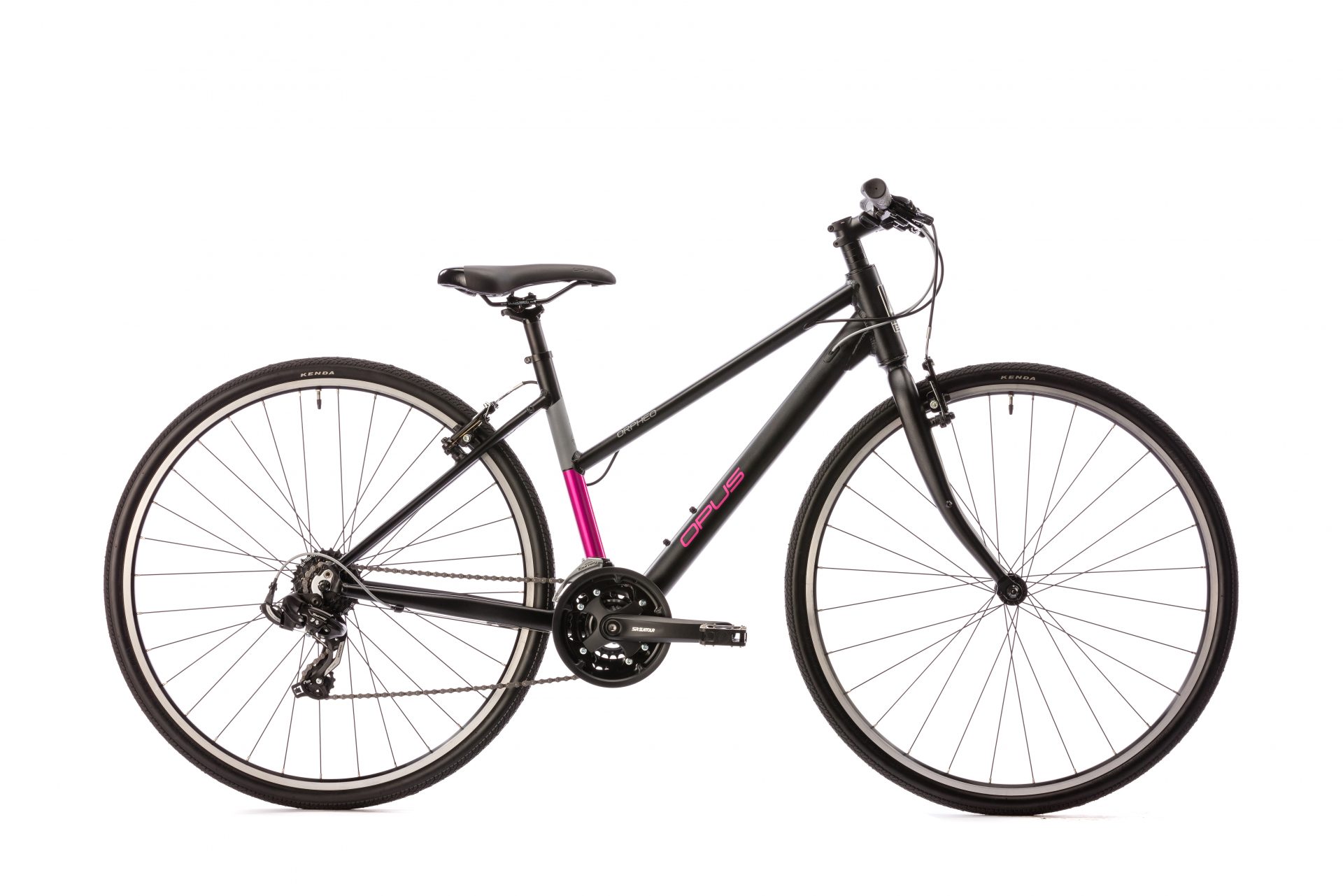

Colors:
Technologies
3X7 Gearing
3X7 Gearing
Meta 10 Alloy
Meta 10 Alloy
Optimized Gearing
Optimized Gearing
XS-M
XS-M
Characteristics
Frame
Meta 10 aluminum
Fork
Steel 1 1/8 in
Weight (lb)
25.8 lb / 11.7 kg
Sizes
XS S S M
Shifters
Shimano ST-EF500 3 x 7
Front derailleur
Shimano Tourney
Rear derailleur
Shimano Tourney
Brakes
Z Star RX-823DK V-brake
Brakelevers
Shimano
Crank
Suntour XCC-T102
Chainrings
42-34-24
Bottom bracket
Neco cartridge
Cassette
Shimano 12-28
Chain
KMC-Z7
Headset
Neco H115 sealed semi- integrated
Handlebar
Opus Gold 12 mm rise
Stem
Opus Bronze
Grips tape
Velo ERGO dual density
Saddle
Opus Tarmac Plus
Seatpost
Opus Bronze 27.2 x 300
Wheels rims
Weinmann ZAC 19
Hubs
Joytech
Tires
Kenda Kwick Tendril 700 x 35
Pedals
FPD NW-247
Other
Front and rear-rack and fender ready
Geometry
| Size | XS | S | M |
| Rider’s height (± 5CM) | 150 | 156 | 164 |
| Rider’s height (± 2″) | 4’11” | 5’1.5” | 5’4.5” |
| S – Seat tube | 400 | 430 | 460 |
| TT – Top tube | 515 | 529 | 548 |
| HT – Head tube | 128 | 141 | 155 |
| HA – Head angle | 69.75 | 70.5 | 71 |
| SA – Seat angle | 75 | 74.5 | 73.5 |
| CS – Chain stay | 445 | 445 | 445 |
| D – BB drop | 65 | 65 | 65 |
| ST – Stack | 533 | 548 | 563 |
| RE – Reach | 372 | 377 | 382 |
| SO – Stand over | 633 | 655 | 692 |
| Handlebar width (mm) | 620 | 620 | 620 |
| Stem length (mm) | 70 | 70 | 80 |
| Crank length (mm) | 170 | 170 | 170 |
