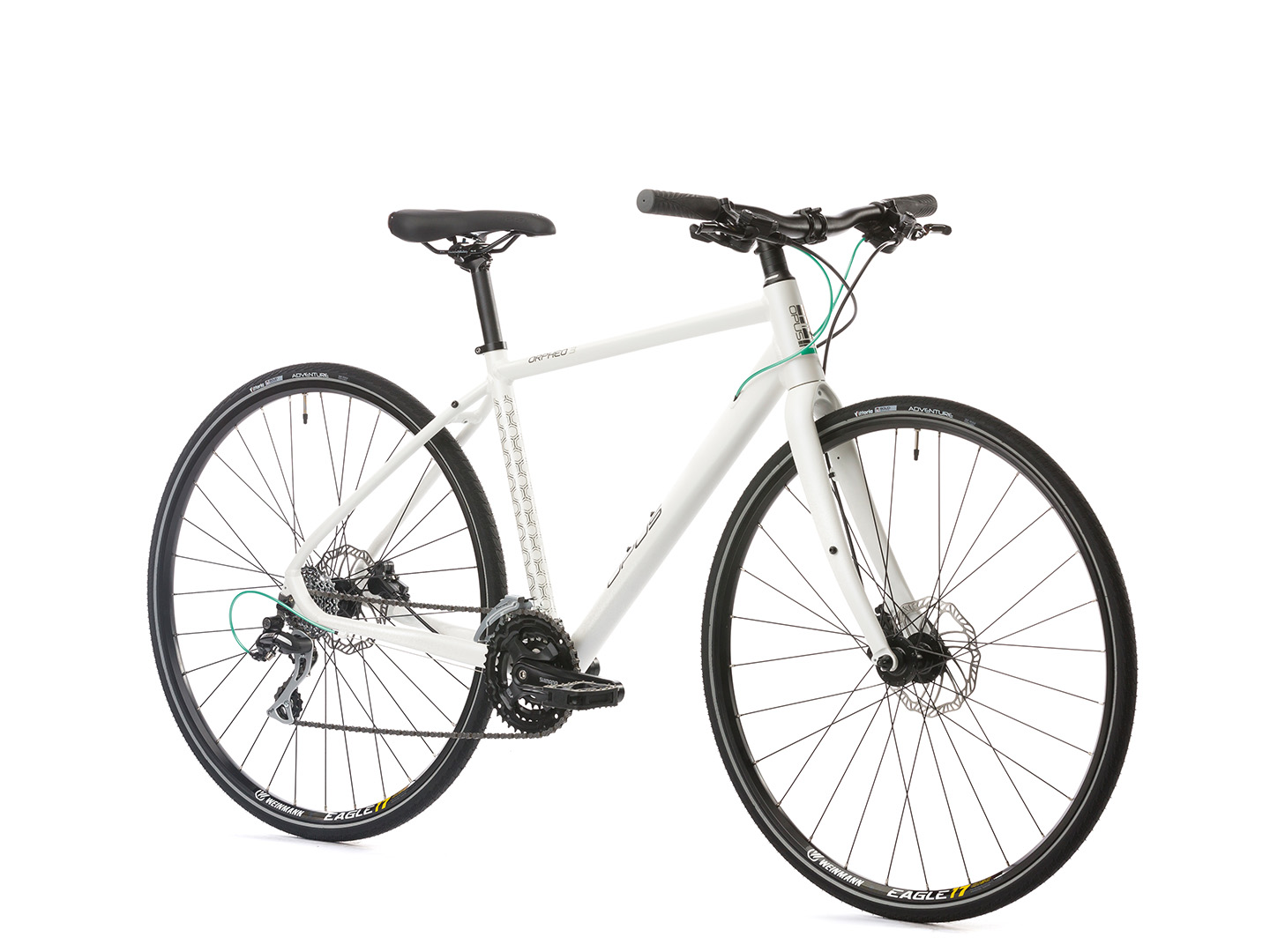

ORPHEO 3 W
2018
Archive
Key elements:
- Hydraulic disc brakes
- Flawless shifting and smooth pedalling with 3x8 drivetrain
- Internal cable routing
Colors:
Characteristics
Frame
Meta 20 6061 Aluminum
Fork
Aluminum Tapered 1-1/4 to 1-1/8 in
Weight (lb)
25.6 lb / 11.6 kg
Sizes
XS S S M
Shifters
Shimano Altus 3 x 8
Front derailleur
Shimano Tourney
Rear derailleur
Shimano Acera
Brakes
Promax Solve Hydraulic Disc
Brakelevers
Promax Solve For Women
Crank
Shimano FC-TY701
Chainrings
42-34-24
Bottom bracket
Shimano Cartridge
Cassette
Shimano 11-28
Chain
KMC-Z7
Headset
FSA Orbit Integrated Sealed
Handlebar
Opus Silver 15 mm Rise
Stem
Opus Silver
Grips tape
Velo ERGO Dual Density
Saddle
Opus Tarmac Women’s
Seatpost
Opus Bronze 27.2 x 300
Wheels rims
Weinmann EAGLE 17
Hubs
Joytech
Tires
Vittoria Adventure Solid Shield 700 x 32
Pedals
FPD NW-247
Geometry
| Size | XS | S | M |
| Rider’s height (± 5CM) | 150 | 156 | 164 |
| Rider’s height (± 2″) | 4’11” | 5’1.5” | 5’4.5” |
| S – Seat tube | 430 | 460 | 490 |
| TT – Top tube | 517 | 526 | 545 |
| HT – Head tube | 128 | 140 | 150 |
| HA – Head angle | 69.5 | 70.5 | 72 |
| SA – Seat angle | 74.5 | 74.5 | 73.7 |
| CS – Chain stay | 445 | 445 | 445 |
| D – BB drop | 65 | 65 | 65 |
| ST – Stack | 530 | 545 | 560 |
| RE – Reach | 370 | 375 | 380 |
| SO – Stand over | 731 | 756 | 778 |
| Handlebar width (mm) | 620 | 620 | 620 |
| Stem length (mm) | 70 | 70 | 80 |
| Crank length (mm) | 170 | 170 | 170 |
