ORPHEO 3 ST
2020
Archive
Key elements:
- Sporty geometry for performance and comfort
- Alloy frame and fork
- Shimano 3x9 drivetrain
- Powerful hydralic disc brakes
- Internal cable routing

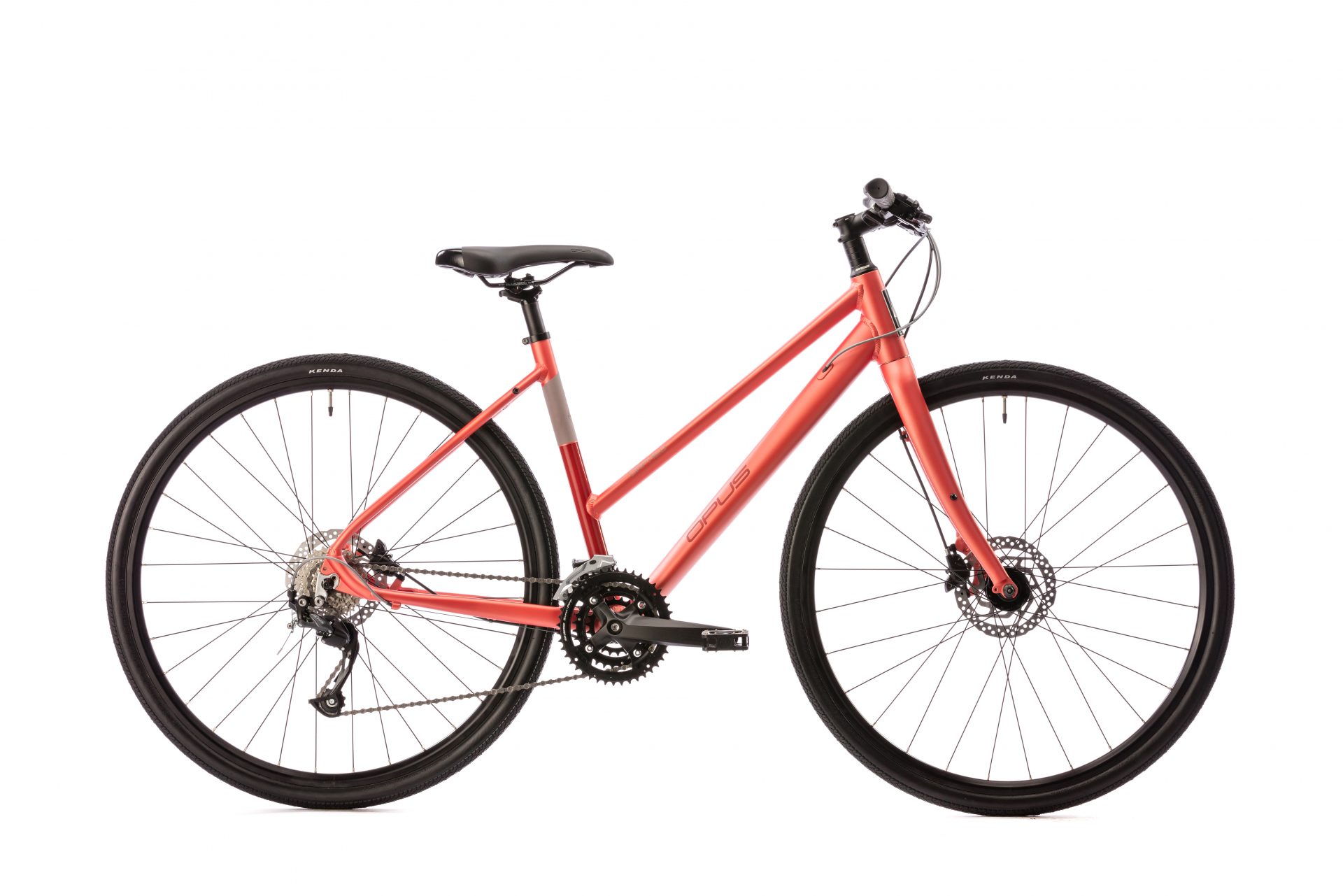

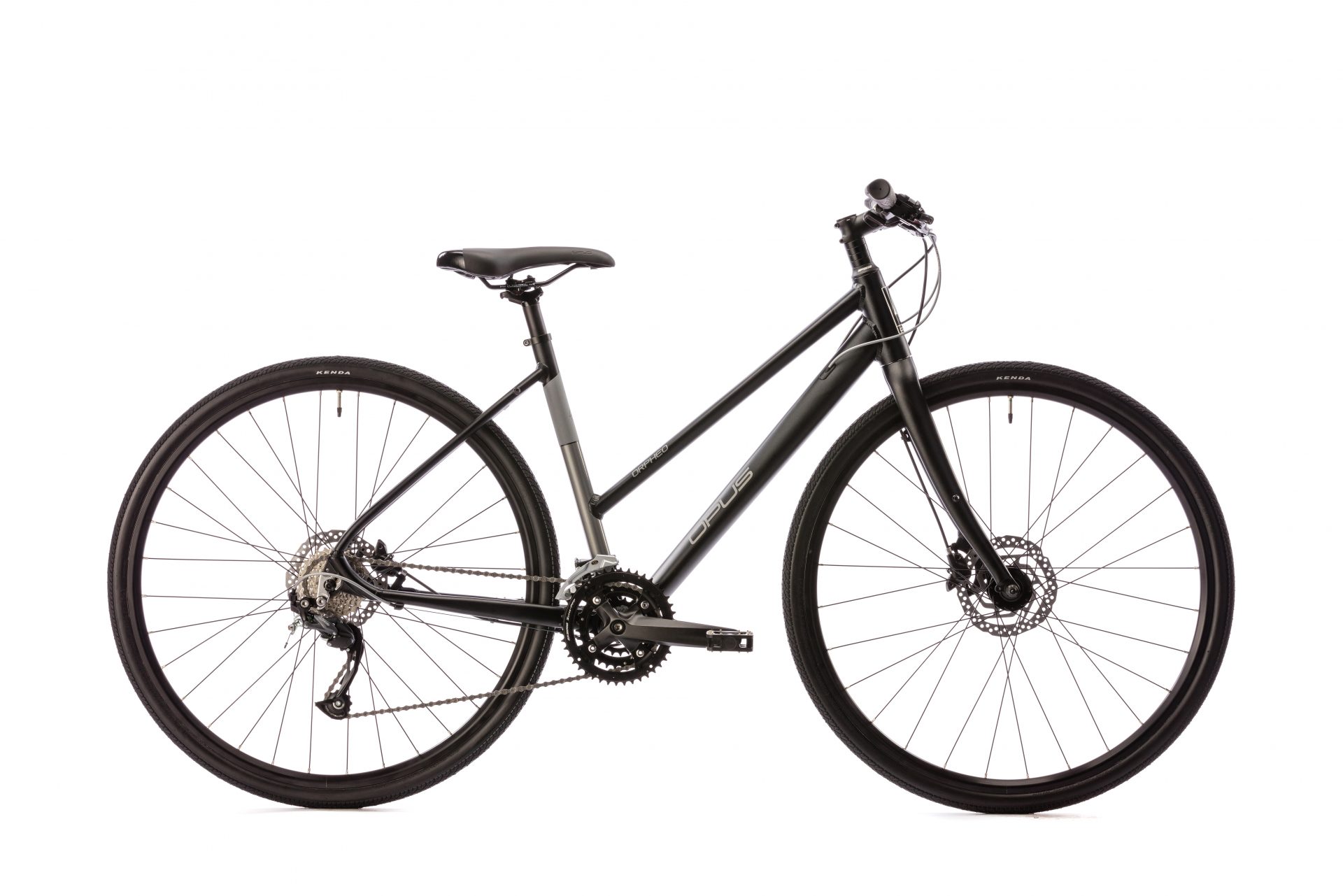

Colors:
Technologies
3X9 Gearing
3X9 Gearing
Alloy Fork
Alloy Fork
Meta 20 Alloy
Meta 20 Alloy
Optimized Gearing
Optimized Gearing
XS-M
XS-M
Characteristics
Frame
Meta 20 aluminum
Fork
Aluminum tapered 1-1/4 to 1-1/8 in
Weight (lb)
25.3 lb / 11.5 kg
Sizes
XS S S M
Shifters
Shimano ST-EF505 3 x 9
Front derailleur
Shimano Altus
Rear derailleur
Shimano Altus
Brakes
Shimano BR-MT200 hydraulic disc
Brakelevers
Shimano
Crank
Suntour XCT9-T414
Chainrings
44-32-22
Bottom bracket
Suntour sealed cartridge
Cassette
Shimano 11-28
Chain
KMC-Z9
Headset
FSA Orbit integrated sealed
Handlebar
Opus Gold 12 mm rise
Stem
Opus Silver
Grips tape
Velo ERGO Dual Density
Saddle
Opus Tarmac Plus
Seatpost
Opus Bronze 27.2 x 300
Wheels rims
Weinmann X-Star 19D
Hubs
Joytech
Tires
Kenda Kwick Tendril 700 x 35
Pedals
FPD NW-247
Other
Front and rear-rack and fender ready
Geometry
| Size | XS | S | M |
| Rider’s height (± 5CM) | 150 | 156 | 164 |
| Rider’s height (± 2″) | 4’11” | 5’1.5” | 5’4.5” |
| S – Seat tube | 430 | 460 | 490 |
| TT – Top tube | 517 | 526 | 545 |
| HT – Head tube | 128 | 140 | 150 |
| HA – Head angle | 69.5 | 70.5 | 72 |
| SA – Seat angle | 74.5 | 74.5 | 73.7 |
| CS – Chain stay | 445 | 445 | 445 |
| D – BB drop | 65 | 65 | 65 |
| ST – Stack | 530 | 545 | 560 |
| RE – Reach | 370 | 375 | 380 |
| SO – Stand over | 633 | 645 | 658 |
| Handlebar width (mm) | 620 | 620 | 620 |
| Stem length (mm) | 70 | 70 | 80 |
| Crank length (mm) | 170 | 170 | 170 |
