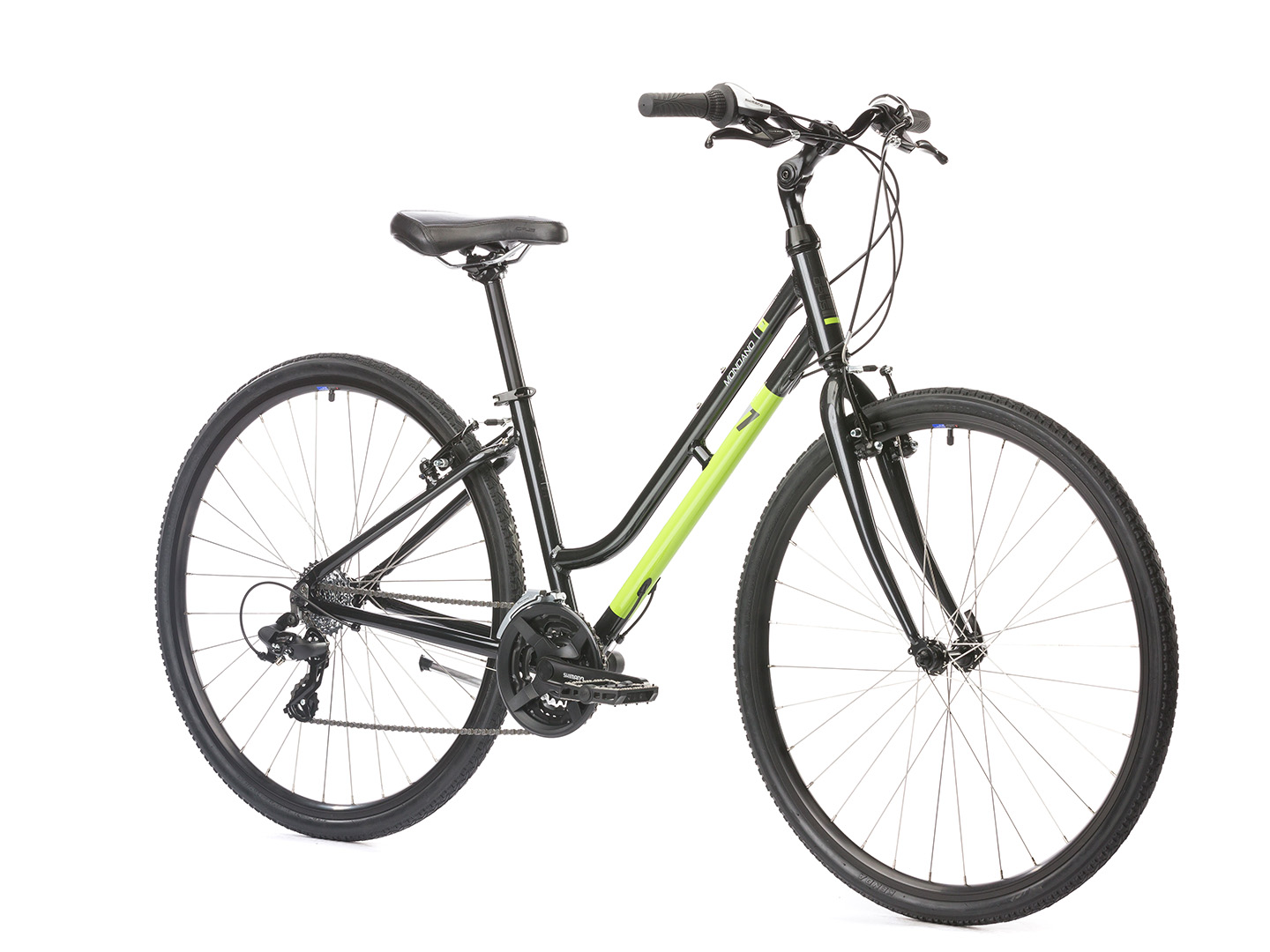

MONDANO 1 ST
2018|2019
Archive
Key elements:
- Complete Shimano 3x8 drivetrain for smooth shifting
- Upright geometry for maximum comfort
- Also available in step-through design
Colors:
Characteristics
Frame
Meta 10 6061 Aluminum
Fork
Steel 1 1/8 in
Weight (lb)
28.4 lb / 12.9 kg
Sizes
XS S S M
Shifters
Shimano Tourney Revo 3 x 8
Front derailleur
Shimano Tourney
Rear derailleur
Shimano Tourney
Brakes
Tektro C310
Brakelevers
Tektro CL331-TS
Crank
Shimano FC-TY301
Chainrings
42-34-24
Bottom bracket
Neco Cartridge
Cassette
Shimano 11-28
Chain
KMC-Z7
Headset
FP Threaded
Handlebar
Opus Bronze 40 mm Rise
Stem
Promax Adjustable Quill
Grips tape
Velo ERGO Dual Density
Saddle
Opus Comfort
Seatpost
Opus Bronze 27.2 x 300
Wheels rims
Ace DW002
Hubs
Joytech
Tires
Kenda K935 700c x 35
Pedals
FPD NW-420
Other
Kick stand
Geometry
| Size | XS | S | M |
| Rider’s height (± 5CM) | 155 | 165 | 175 |
| Rider’s height (± 2″) | 5’1″ | 5’5″ | 5’9″ |
| S – Seat tube | 390 | 440 | 490 |
| TT – Top tube | 559 | 581 | 598 |
| HT – Head tube | 140 | 155 | 175 |
| HA – Head angle | 70 | 70.5 | 70.5 |
| SA – Seat angle | 72 | 71.5 | 71.5 |
| CS – Chain stay | 460 | 460 | 460 |
| D – BB drop | 70 | 70 | 70 |
| ST – Stack | 574 | 591 | 610 |
| RE – Reach | 372 | 383 | 394 |
| SO – Stand over | |||
| Handlebar width (mm) | 600 | 600 | 600 |
| Stem length (mm) | Adjustable | Adjustable | Adjustable |
| Crank length (mm) | 170 | 170 | 170 |
