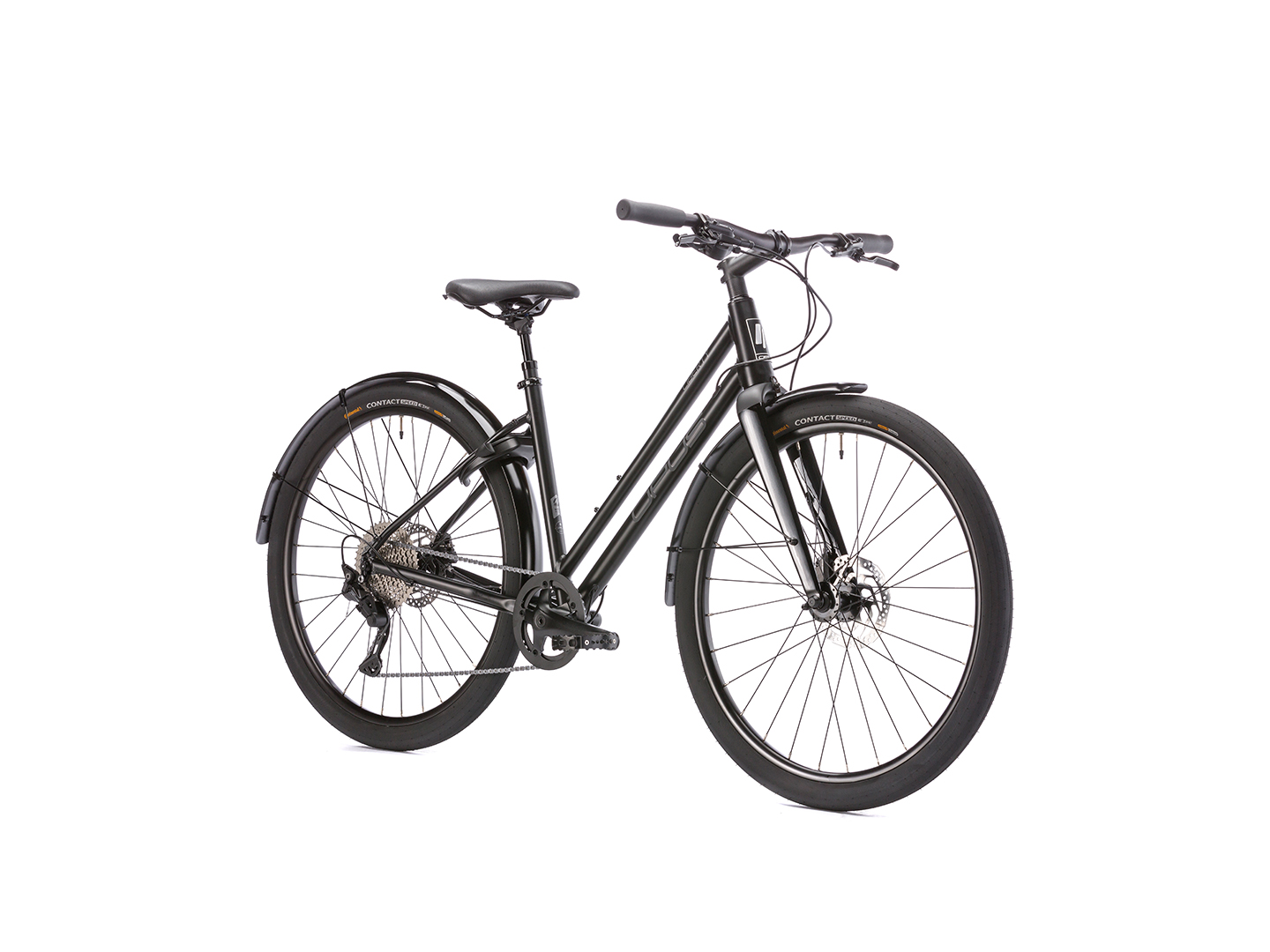

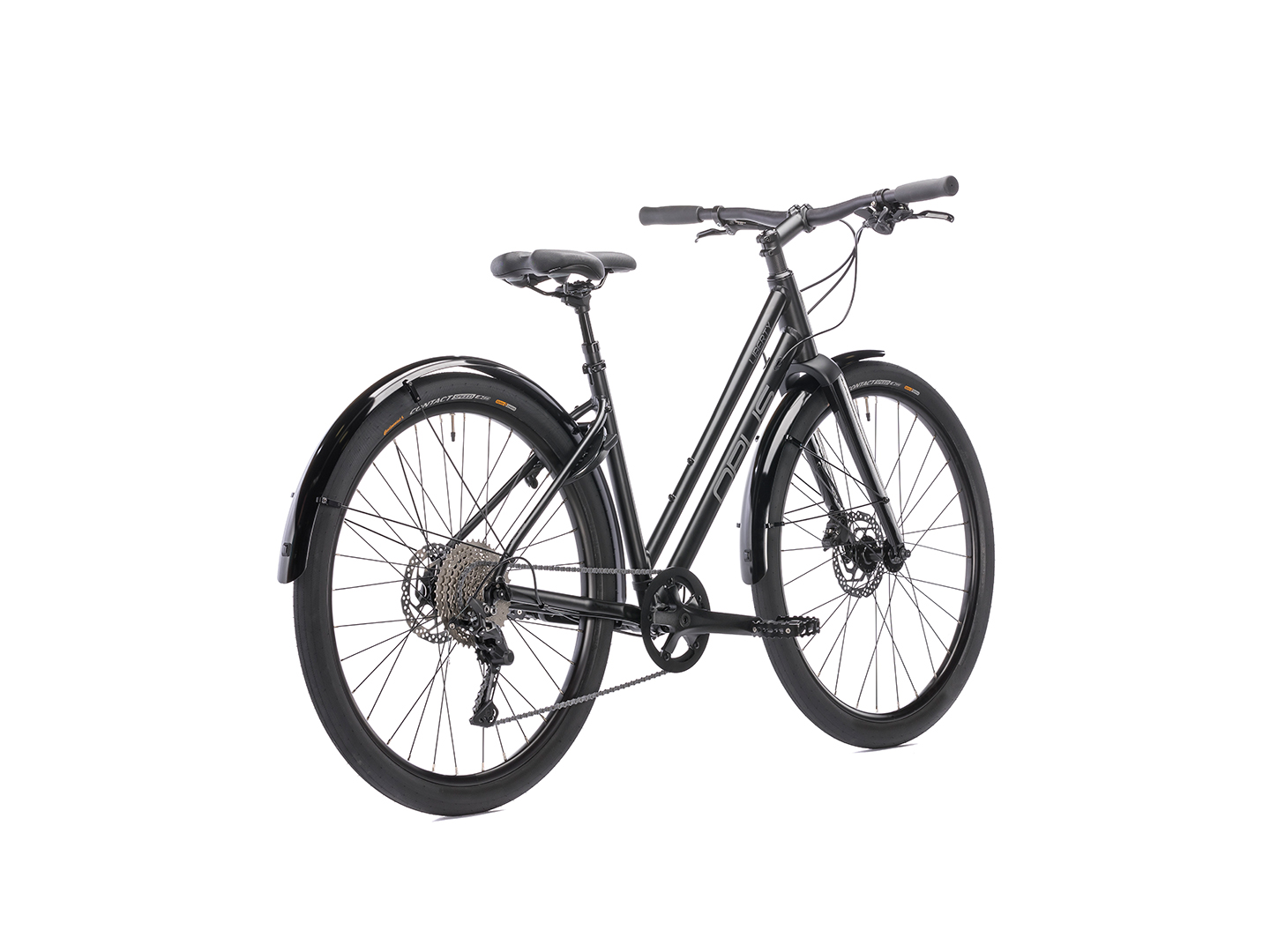

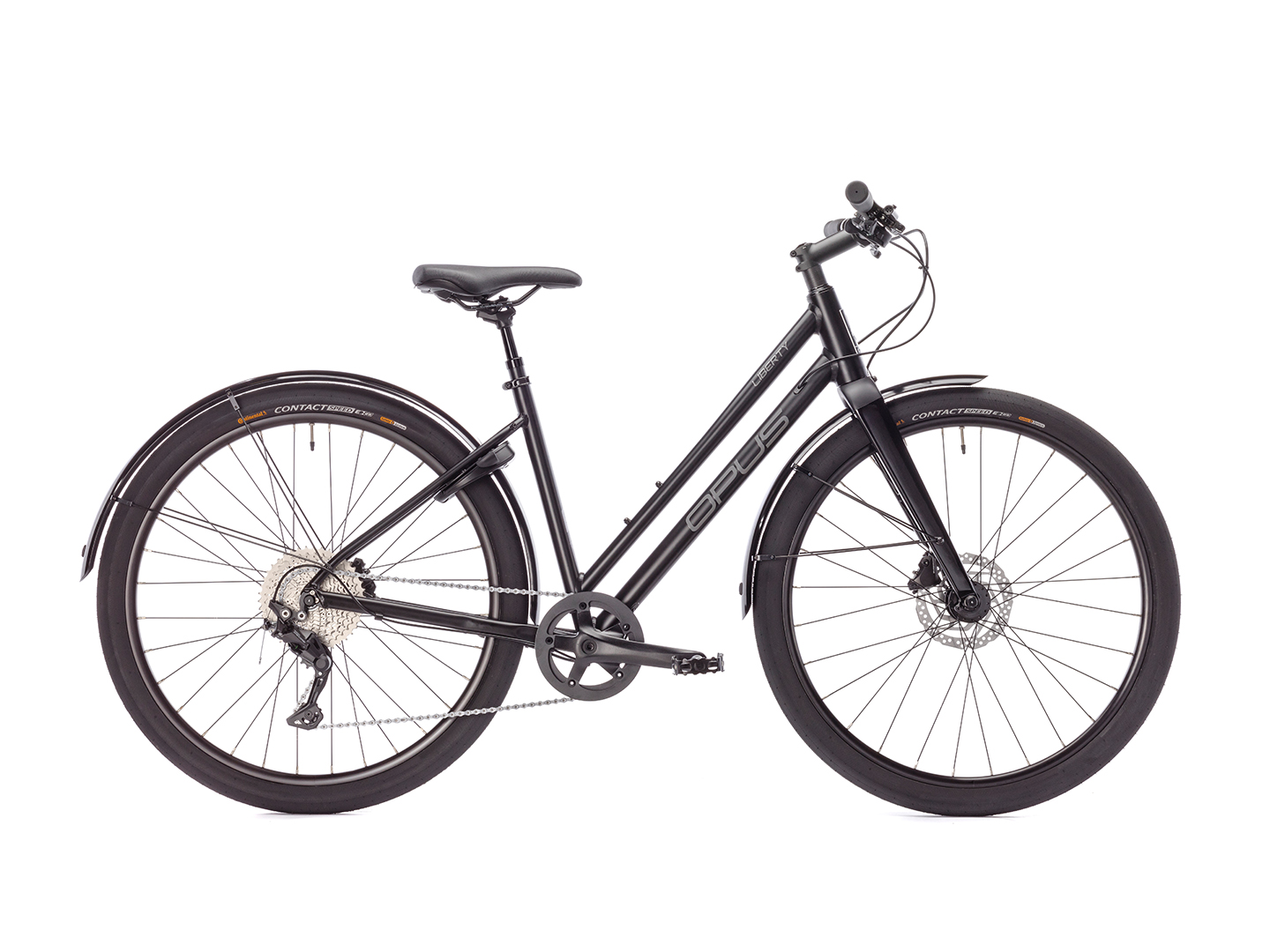

Liberty HV ST
2021
Archive
Key elements:
- 6061 Meta 30 Aluminum frame
- Future proof flat-mount disc-brakes on a carbon fork w/60mm opening
- Wide-ranging 1x10 Shimano Deore drivetrain
- Sleek fenders keep your cottons fresh & dry
- Integrated Ring-lock & cushiony suspension seat-post
Colors:
Technologies
1X10 Gearing
1X10 Gearing
Carbon Fork
Carbon Fork
Meta 30 Alloy
Meta 30 Alloy
Characteristics
Frame
Meta 30 Aluminum
Fork
Carbon w/ 60mm clearance
Weight (lb)
28.7 lb / 13 kg
Sizes
S S M
Shifters
Shimano Deore M4100 10
Front derailleur
N/A
Rear derailleur
Shimano Deore M4120
Brakes
Shimano BR-U300 flat-mount hydraulic disc
Brakelevers
Shimano BL-M200
Crank
Prowheel Ounce single ring
Chainrings
42
Bottom bracket
CH-46-E cartridge
Cassette
Shimano CS-4100 11-42
Chain
KMC X10 EPT
Headset
FSA NO.42/48/ACB
Handlebar
Promax HB-3188DB
Stem
Opus Bronze
Grips tape
Opus Lifestyle, Duracork
Saddle
Opus Lifestyle Sport
Seatpost
Promax SP-877 suspension post
Wheels rims
Weinmann U28 650b
Hubs
Joytech
Tires
Continental Contact Speed 650b x50c
Pedals
FPD NW-99K
Other
Sleek alloy fenders
Other
Chain catcher
Other
integrated ringlock
Geometry
| Size | S | M |
| Rider’s height (± CM) | 162 | 170 |
| Rider’s height (± “) | 5’4″ | 5’7″ |
| S – Seat tube | 440 | 480 |
| TT – Top tube | 531 | 554 |
| HT – Head tube | 150 | 170 |
| HA – Head angle | 70 | 72 |
| SA – Seat angle | 74 | 73 |
| CS – Chain stay | 450 | 450 |
| D – BB drop | 70 | 70 |
| ST – Stack | 567 | 594 |
| RE – Reach | 368 | 372 |
| SO – Stand over | ||
| Handlebar width (mm) | 640 | 680 |
| Stem length (mm) | 90 | 100 |
| Crank length (mm) | 170 | 170 |
