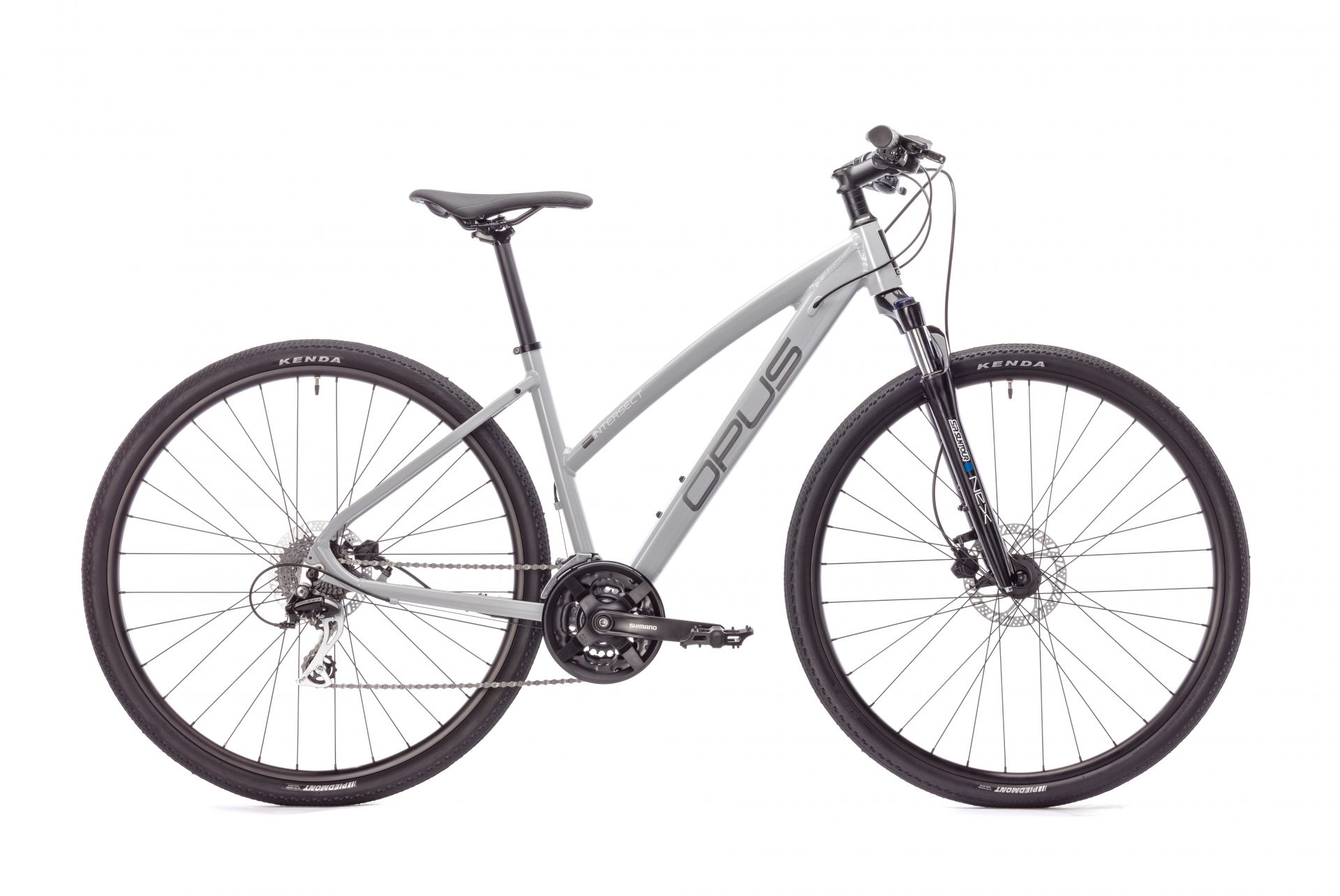

INTERSECT 3 ST
2020|2021
Archive
Key elements:
- Progressive Geometry for perfect position on roads or trails
- Suspension fork with lockout for efficiency on street or trail
- Shimano 3x8 drivetrain
- Kenda Piedmont 40 mm tires handle trail or city
- Internal cable routing
Colors:
Technologies
3X8 Gearing
3X8 Gearing
Meta 20 Alloy
Meta 20 Alloy
Optimized Gearing
Optimized Gearing
Progressive Geometry
Progressive Geometry
XS-M
XS-M
Characteristics
Frame
Meta 20 aluminum
Fork
Suntour NEX with lockout
Weight (lb)
30.4 lb / 13.8 kg
Sizes
XS S S M
Shifters
Shimano Altus 3 x 8
Front derailleur
Shimano Altus
Rear derailleur
Shimano Acera
Brakes
Tektro HD-T275 hydraulic disc
Brakelevers
Tektro
Crank
Shimano FC-TY301
Chainrings
42-34-24
Bottom bracket
Shimano sealed cartridge
Cassette
Shimano 11-30
Chain
KMC-Z8.3
Headset
FSA Orbit integrated sealed
Handlebar
Alloy 18 mm rise
Stem
Promax
Grips tape
Velo Ergo dual density
Saddle
Opus Endurance
Seatpost
Promax alloy 27.2 x 300
Wheels rims
Alex DP23
Hubs
Joytech
Tires
Kenda K1185 Piedmont 700 X 40
Pedals
FPD NW-284NF
Other
Rear-rack and fender ready
Geometry
| Size | XS | S | M |
| Rider’s height (± 5CM) | 155 | 163 | 170 |
| Rider’s height (± 2″) | 5’1″ | 5″4″ | 5’7″ |
| S – Seat tube | 400 | 435 | 470 |
| TT – Top tube | 548 | 569 | 594 |
| HT – Head tube | 105 | 105 | 120 |
| HA – Head angle | 70.5 | 70.75 | 71 |
| SA – Seat angle | 74.5 | 74 | 73.5 |
| CS – Chain stay | 445 | 445 | 450 |
| D – BB drop | 70 | 70 | 67.5 |
| ST – Stack | 605 | 607 | 619 |
| RE – Reach | 380 | 395 | 410 |
| SO – Stand over | 712 | 723 | 726 |
| Handlebar width (mm) | 640 | 660 | 660 |
| Stem length (mm) | 70 | 80 | 80 |
| Crank length (mm) | 170 | 170 | 175 |
