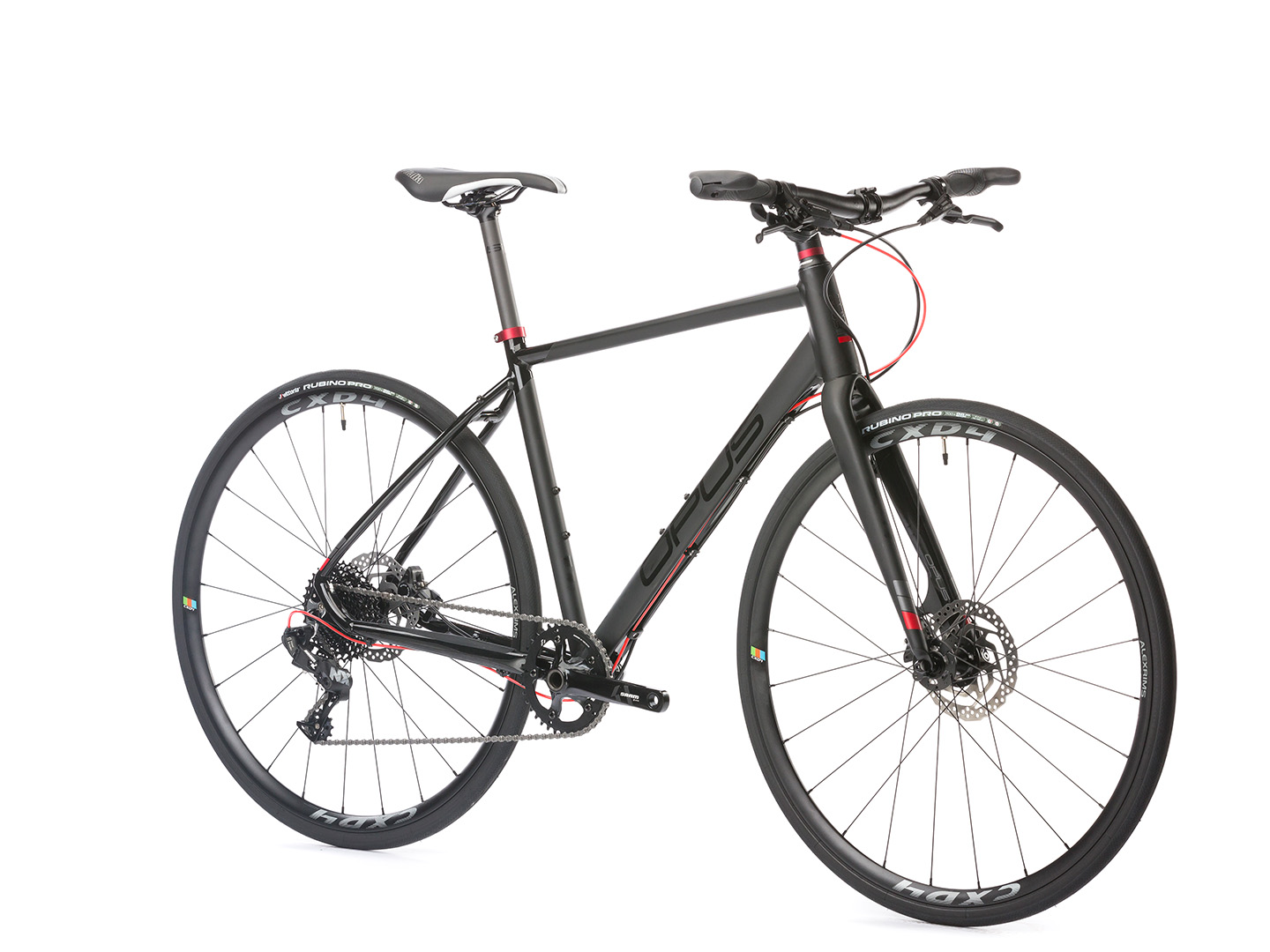

CITATO 1
2018|2019
Archive
Key elements:
- SRAM 1x11 drivetrain
- Superlight CXD4 wheels
- Ergo bar ends for precise handling
Colors:
Characteristics
Fork
Carbon Tapered 1-1/4 to 1-1/8 in
Weight (lb)
20.7
Sizes
S M L L XL XXL
Color(s)
Black/Black Black/Black
Shifters
SRAM NX 1 x 11
Rear derailleur
SRAM NX1
Brakes
Shimano BR-M446 Hydraulic Disc
Brakelevers
Shimano BL-M445
Crank
SRAM S350-1
Chainrings
(S-M) 38, (L-XXL) 40
Bottom bracket
SRAM GXP
Cassette
SRAM PG1130 11-36
Chain
SRAM PC1110
Headset
FSA Orbit Integrated Sealed
Handlebar
Opus Gold 15 mm Rise
Stem
Opus Silver
Grips tape
Velo ERGO w/Integrated Bar Ends
Saddle
Selle Italia Q-Bik
Seatpost
Opus Gold Carbon 27.2 x 300
Wheels rims
Alex CXD-4
Hubs
Alex
Tires
Vittoria Rubino Pro Graphene 700 x 28
Pedals
N/A
Other
Rear-rack and fender ready
Geometry
| Size | S | M | L | XL | XXL |
| Rider’s height (± 5CM) | 156 | 164 | 171 | 180 | 188 |
| Rider’s height (± 2″) | 5’1.5” | 5’4.5” | 5’7.5” | 5’11” | 6’2″ |
| S – Seat tube | 460 | 490 | 520 | 550 | 580 |
| TT – Top tube | 530 | 545 | 565 | 580 | 590 |
| HT – Head tube | 135 | 150 | 165 | 180 | 195 |
| HA – Head angle | 71.5 | 72 | 72 | 72.5 | 72.5 |
| SA – Seat angle | 74.5 | 73.7 | 73 | 72.5 | 72 |
| CS – Chain stay | 435 | 435 | 435 | 435 | 435 |
| D – BB drop | 65 | 65 | 65 | 65 | 65 |
| ST – Stack | 551 | 567 | 582 | 598 | 612 |
| RE – Reach | 376 | 379 | 387 | 391 | 391 |
| SO – Stand over | 761 | 783 | 804 | 827 | 847 |
| Handlebar width (mm) | 620 | 620 | 620 | 620 | 620 |
| Stem length (mm) | 90 | 100 | 110 | 110 | 120 |
| Crank length (mm) | 170 | 172.5 | 172.5 | 172.5 | 175 |
