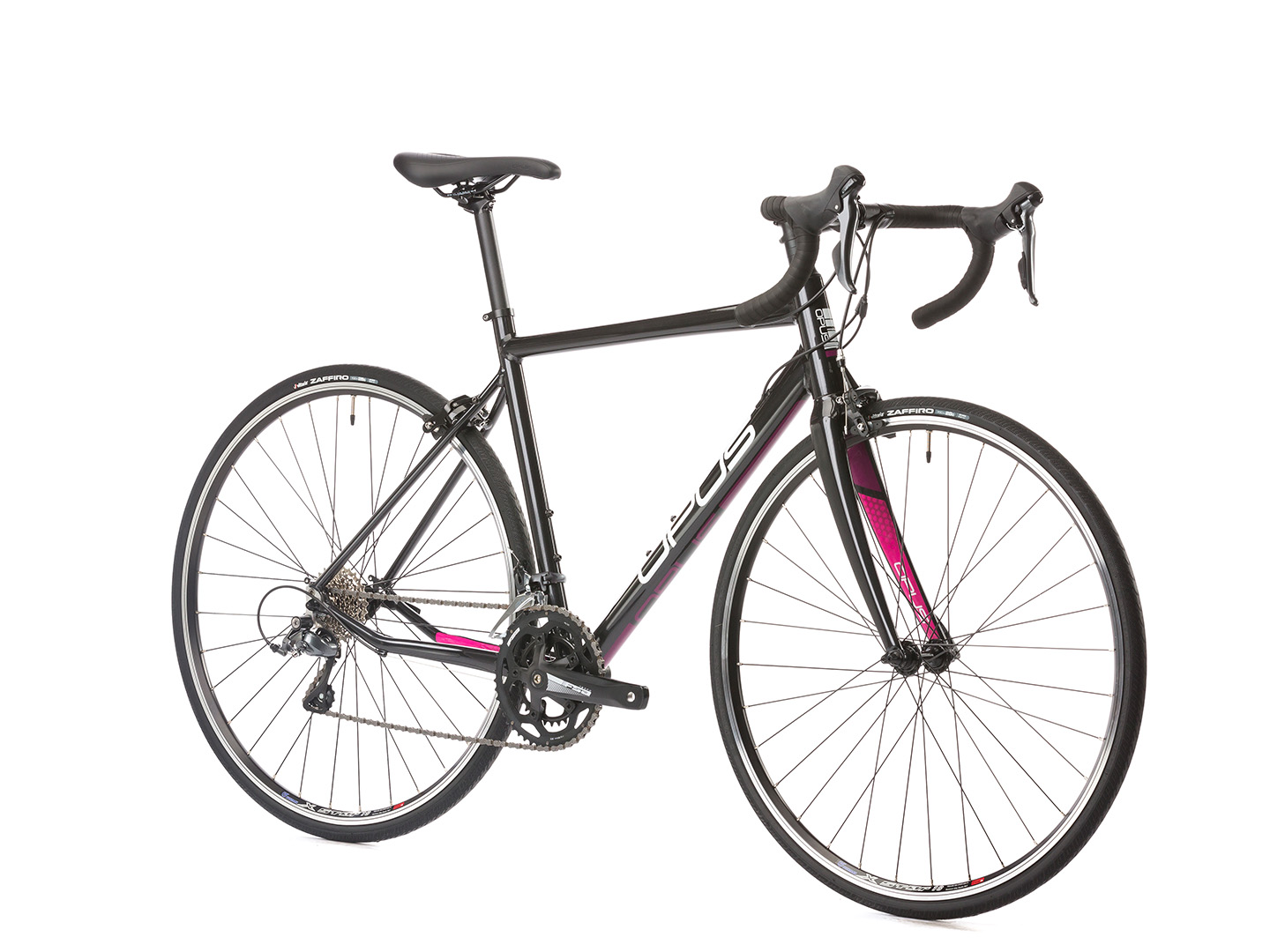

ANDANTE 5 W
2018
Archive
Key elements:
- New Shimano Claris R2000 drivetrain with FSA crank
- Carbon fork
- Hand-finished wheels with Weinmann rims
Colors:
Characteristics
Frame
Meta 30 6061 Aluminum
Fork
Carbon Tapered 1-1/4 to 1-1/8 in
Weight (lb)
21.9 lb / 10 kg
Sizes
XXS XXS XS S M
Shifters
Shimano Claris R2000 2 x 8
Front derailleur
Shimano Claris R2000
Rear derailleur
Shimano Claris R2000
Brakes
Tektro R313
Brakelevers
Shimano
Crank
FSA Tempo Adventure
Chainrings
48-32
Bottom bracket
FSA Sealed Cartridge
Cassette
Shimano 11-28
Chain
KMC Z7
Headset
TH Integrated Sealed
Handlebar
Opus Silver
Stem
Opus Silver
Grips tape
Velo VexGel
Saddle
Opus Endurance Women's
Seatpost
Opus Bronze 27.2x 300
Wheels rims
Weinmann X-STAR 18
Hubs
Joytech
Tires
Vittoria Zaffiro 700 x 28
Pedals
N/A
Other
Rear Rack And Fr/Rr Fender Mount
Geometry
| Size | XXS | XS | S | M |
| Rider’s height (± 5CM) | 152 | 160 | 168 | 175 |
| Rider’s height (± 2″) | 5’0” | 5’3” | 5’6″ | 5’9” |
| S – Seat tube | 440 | 480 | 520 | 540 |
| TT – Top tube | 506 | 525 | 544 | 565 |
| HT – Head tube | 123 | 138 | 161 | 180 |
| HA – Head angle | 71 | 71 | 72.5 | 72.5 |
| SA – Seat angle | 75 | 75.5 | 73.5 | 73 |
| CS – Chain stay | 412 | 412 | 415 | 415 |
| D – BB drop | 75 | 70 | 72 | 72 |
| ST – Stack | 522 | 540 | 560 | 580 |
| RE – Reach | 366 | 371 | 377 | 387 |
| SO – Stand over | 709 | 736 | 772 | 790 |
| Handlebar width (mm) | 380 | 380 | 400 | 400 |
| Stem length (mm) | 70 | 80 | 90 | 90 |
| Crank length (mm) | 165 | 170 | 170 | 170 |
