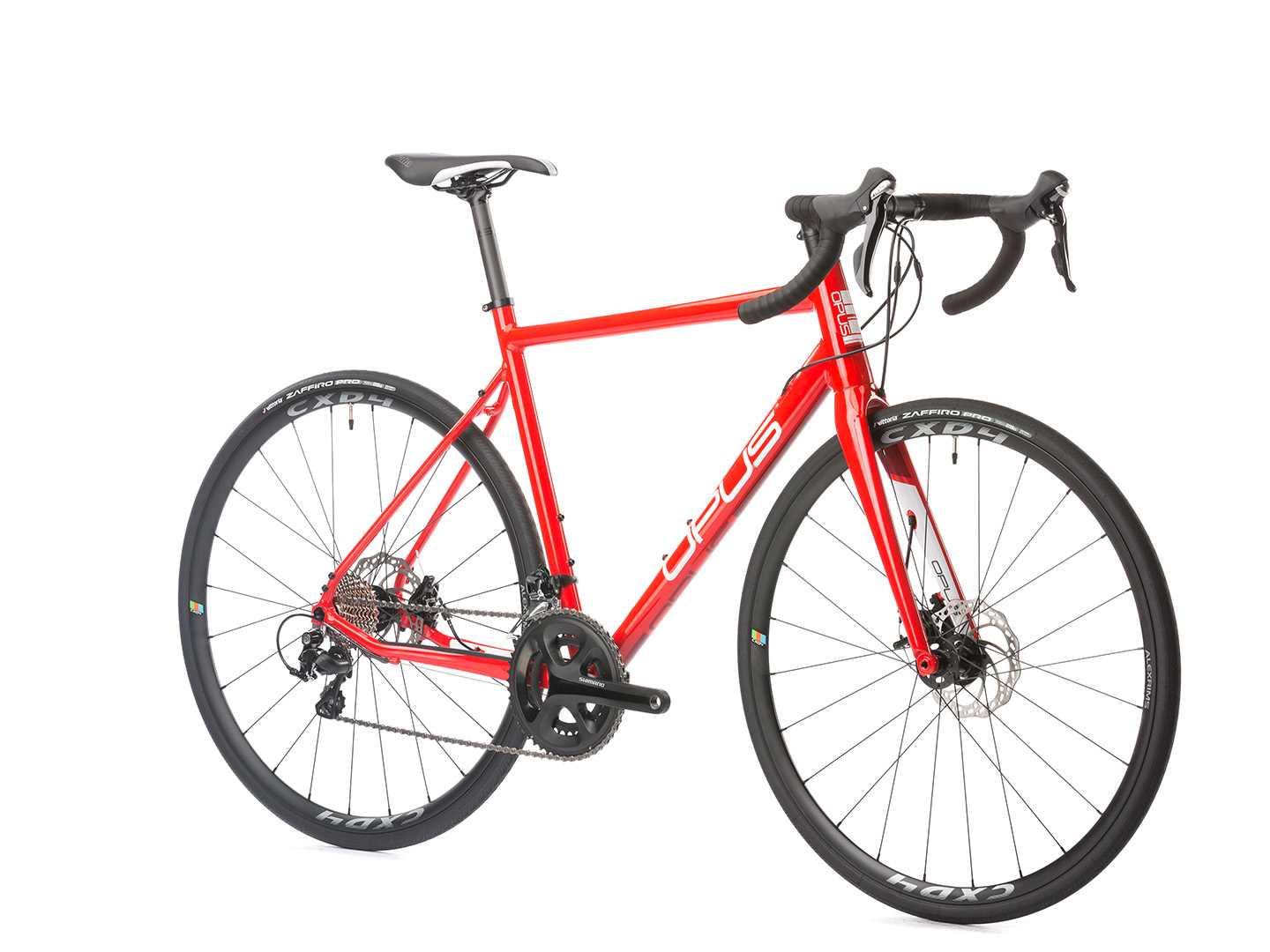

ANDANTE 1
2018
Archive
Key elements:
- Shimano 105 11-speed gruppo
- Promax Decode R twin-piston disc brakes
- Ergonomic X-Race Aero Race handlebar
Colors:
Characteristics
Frame
Meta 30 6061 Aluminum
Fork
Full Carbon Tapered 1-1/2 to 1-1/8 in
Weight (lb)
19.8 lb / 9 kg
Sizes
XXS XS S M L L XL XXL
Shifters
Shimano 105 2 x 11
Front derailleur
Shimano 105
Rear derailleur
Shimano 105
Brakes
Promax Decode R Flat Mount Twin Piston Disc
Brakelevers
Shimano
Crank
Shimano RS510
Chainrings
50-34
Bottom bracket
Shimano 86.5 mm
Cassette
Shimano 11-28
Chain
Shimano
Headset
FSA Orbit Integrated Sealed
Handlebar
X-Race Aero 8° Flare
Stem
Opus Bronze
Grips tape
Velo VexGel
Saddle
Selle Italia Q-Bik
Seatpost
Opus Gold Carbon 27.2 x 300
Wheels rims
Alex CXD-4
Hubs
Alex Through Axle 12MM Fr/Rr
Tires
Vittoria Zaffiro Pro 700 x 28
Pedals
N/A
Other
KCNC Through Axles
Other
Rear Rack And Fr/Rr Fender Mounts With Hardware
Geometry
| Size | XXS | XS | S | M | L | XL | XXL |
| Rider’s height (± 5CM) | 155 | 160 | 168 | 175 | 183 | 189 | 196 |
| Rider’s height (± 2″) | 5’1” | 5’3” | 5’6″ | 5’9” | 6′ | 6’2.5″ | 6’5″ |
| S – Seat tube | 440 | 480 | 520 | 540 | 560 | 580 | 600 |
| TT – Top tube | 506 | 525 | 544 | 565 | 580 | 600 | 616 |
| HT – Head tube | 110 | 125 | 148 | 167 | 188 | 211 | 230 |
| HA – Head angle | 70.5 | 71 | 72.5 | 72.5 | 72.5 | 72.5 | 73 |
| SA – Seat angle | 75 | 74 | 73.5 | 73 | 73 | 72.5 | 72.5 |
| CS – Chain stay | 412 | 412 | 415 | 415 | 415 | 418 | 418 |
| D – BB drop | 75 | 75 | 72 | 72 | 72 | 70 | 70 |
| ST – Stack | 522 | 540 | 560 | 580 | 600 | 620 | 640 |
| RE – Reach | 366 | 371 | 377 | 387 | 396 | 404 | 414 |
| SO – Stand over | 709 | 736 | 772 | 790 | 810 | 830 | 850 |
| Handlebar width (mm) | 380 | 400 | 420 | 420 | 440 | 440 | 460 |
| Stem length (mm) | 80 | 90 | 100 | 100 | 110 | 110 | 120 |
| Crank length (mm) | 165 | 170 | 172.5 | 172.5 | 172.5 | 175 | 175 |
